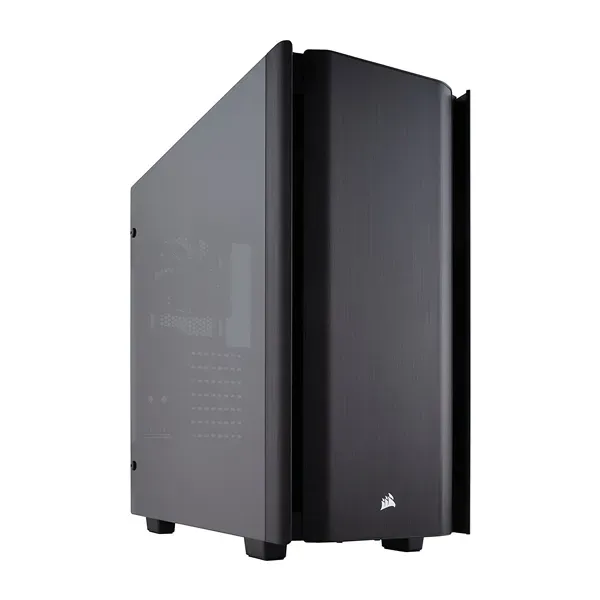

Corsair Obsidian Series 500D Premium Mid-Tower Case

Corsair Obsidian Series® 500D Premium Mid-Tower Case
THIS IS THE NEW OBSIDIAN

The Obsidian Series 500D is a state-of-the-art mid-tower enthusiast PC case with iconic CORSAIR design, smoked tempered glass side doors and premium aluminum trim.

SLEEK, BLACK AND BEAUTIFUL

Iconic Obsidian series styling combines clean exterior lines and smoked tempered glass side doors.

BUILT BETTER

Aluminum front plate, roof plate and door handles add a refined feel and premium look.

SUPERB COOLING

Direct Airflow Path™ design channels cool air where your PC needs it most.

REMOVABLE FAN AND RADIATOR TRAYS

Installing fans and radiators is now easy with removable trays that can hold up to five 120mm fans or four 140mm fans.

EXPANSIVE STORAGE SPACE

Easy-to-use mounts for up to two 3.5in HDDs and three 2.5in SSDs.

FUTURE-PROOF FRONT PANEL

Featuring a super-speed USB 3.1 Type-C port and additional connections for all modern peripherals.

CABLE ROUTING MADE SIMPLE

Hide your cables behind the motherboard tray to keep your build looking tidy with the included PSU cover and rear cable cover.

REMOVABLE, BUILT-IN DUST FILTERS

Keeps your build looking and running clean, inside and out.

CONTENTS AND SPECIFICATIONS
PACKAGE CONTENTS

Obsidian Series® 500D Premium Mid-Tower Case
Quick Start Guide
Accessory Box
 COMPATIBILITY

Mini-ITX
MicroATX
ATX
TECHNICAL SPECIFICATIONS

Maximum GPU Length: 370mm
Maximum PSU Length: 225mm
Maximum CPU Cooler Height: 170mm
Case Expansion Slots: 7
Case Drive Bays: (x3) 2.5" (x2) 3.5"
Case Material: Steel, Aluminum, Tempered Glass
Radiator Compatibility: 120mm; 140mm; 240mm; 280mm; 360mm
Compatible Corsair Liquid Coolers: H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i
