Model No

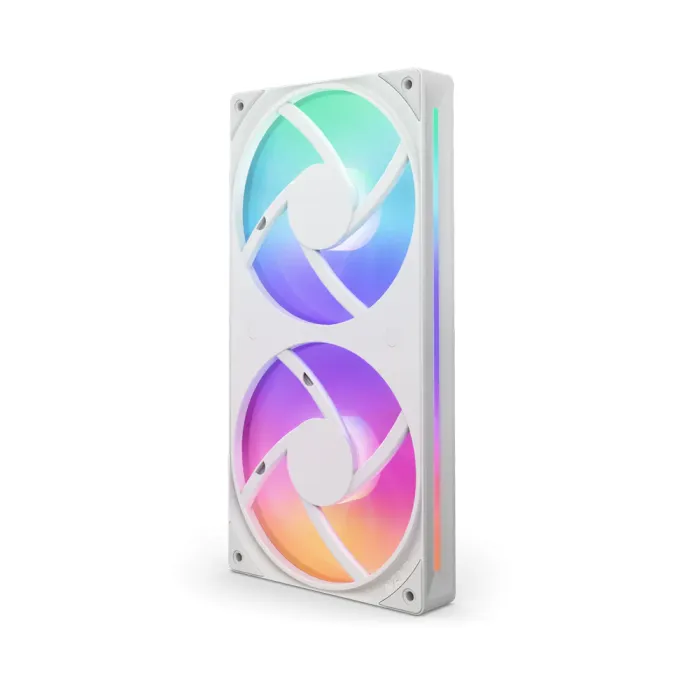

NZXT F240 RGB Core 240MM Single-Frame RGB Fan Unit - White

Color

White

Lighting

8 LEDs per Fan

Bearing Type

Fluid Dynamic Bearing (FDB)

Speed

500 - 2,400 ± 250 RPM per fan

Sound Level

30.00 dBA per fan

Power Consumption

12V DC, 0.56A, 6.72W / 5V DC, 0.45A, 2.25W

Static Pressure

3.3 mm H₂O per fan

Fan Airflow

75.12 CFM per fan

Fan Connector

8-pin for PWM & RGB

Material

Plastic, Rubber, PCB

Cable Length

1 x 600 mm

MTBF

60,000 Hours

Special Features

Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fans.

Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.

Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust.

Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan.

Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals.

PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise.

Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed.

Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately).

Dimension

Height:240 mm

Width:120 mm

Depth:26 mm
