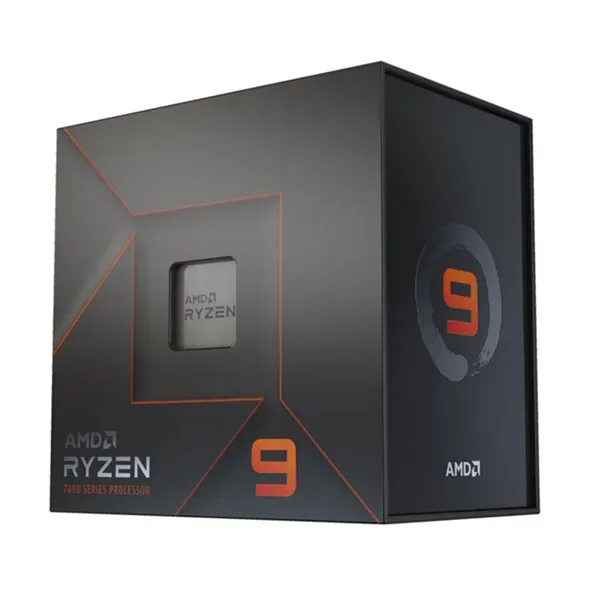

AMD Ryzen 9 7950X 16-Cores AM5 CPU Desktop Processor

AMD Ryzen 9 7950X 16-Cores AM5 CPU Desktop Processor
Level up your gaming and creator experience
AMD Ryzen™ 9 7950X processor can do it all with hyper fast single-core and multi-core performance for the most demanding gamers and creators.

The world’s most advanced PC processor1

When your PC has an AMD Ryzen™ 9 7950X processor, the world’s most advanced PC processor1 for gamers, you can focus on what really matters: being victorious on the digital battlefield.

The latest technologies from AMD

AMD Ryzen™ 9 7950X processor is built to help you beat the clock with time-saving connectivity like PCIe® 5.0, 32 processing threads, and dedicated video accelerators2.

The future of Ryzen processors

Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology3 to the increased bandwidth with PCIe® 5.0.

Specifications


Platform : Desktop
Market Segment : Enthusiast Desktop
Product Family : AMD Ryzen™ Processors
Product Line : AMD Ryzen™ 9 Desktop Processors
AMD PRO Technologies : No
Consumer Use : Yes
Regional Availability : Global
Former Codename : "Raphael AM5"
Architecture : "Zen 4"
# of CPU Cores : 16
Multithreading (SMT) : Yes
# of Threads : 32
Max. Boost Clock : Up to 5.7GHz
Base Clock : 4.5GHz
L1 Cache : 1MB
L2 Cache : 16MB
L3 Cache : 64MB
Default TDP : 170W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 3
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive :  Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets
                                                        X670E
                                                        X670
                                                        B650E
                                                        B650
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) : Not included
Max. Operating Temperature (Tjmax) : 95°C
*OS Support

                   Windows 11 - 64-Bit Edition

                    Windows 10 - 64-Bit Edition

                    RHEL x86 64-Bit

                    Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support : Yes
Native USB 3.2 Gen 2 (10Gbps) Ports : 4
Native USB 3.2 Gen 1 (5Gbps) Ports : 0
Native USB 2.0 (480Mbps) Ports : 1
Native SATA Ports : 0
Native PCIe® Lanes (Total/Usable) : 28/24
Additional Usable PCIe Lanes from Motherboard : AMD X670E  12x Gen4
                            AMD X670   12x Gen4
                            AMD B650E   8x Gen4
                            AMD B650   8x Gen4

NVMe Support : Boot, RAID0, RAID1, RAID10
Memory Channels : 2
Max. Memory : 128GB
System Memory Subtype : UDIMM
Max Memory Speed : 1x1R   5200 MT/s
                                                    1x2R   5200 MT/s
                                                    2x1R   3600 MT/s
                                                    2x2R    3600 MT/s

ECC Support : Yes (Requires mobo support)
Graphics Capabilities

Integrated Graphics : Yes
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
GPU Base : 400 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes
Product IDs

Product ID Boxed : 100-100000514WOF
Product ID Tray : 100-000000514
Key Features

Supported Technologies :
                                            AMD EXPO™ Technology
                                            AMD Ryzen™ Technologies
