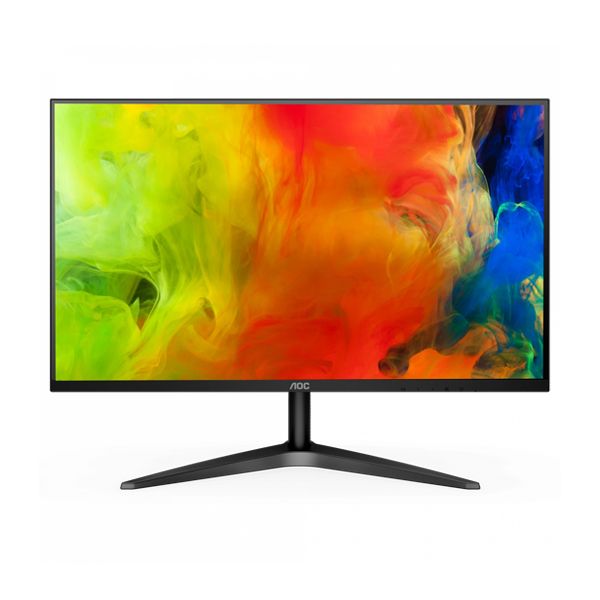

AOC 24B1H 24 Inch FHD 60Hz LCD Monitor

Equipped with a VA panel, the 24B1H delivers a staggering 3000:1 static contrast ratio with deep, inky blacks. Its sleek 23.6" panel at 1080p resolution is 3-sides borderless and has an ultra-slim profile of just 12.5 mm that lets you focus on the display practically from every angle (178/178).

Frameless design

Besides looking modern and attractive, frameless designs enable seamless multi-monitor setups. Your cursor/windows will not be lost anymore in the dark abyss of bezels, when many displays are placed side by side.

Slim Design

Sometimes, less is more: With its minimalistic, slim profile, this monitor seamlessly blends into your working environment instead of obstructing your vision with a bulky casing. Enjoy more space on your desk, easy transportation and an appealing design with this slick, lightweight display.

HDMI

HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).

VA Panel

VA Panels (Vertical Alignment) display deeper blacks and a high contrast for extra vivid and bright images.

Flicker Free

AOC Flicker-Free Technology utilises a DC (Direct Current) backlight panel, reducing flickering light levels. With eye strain and fatigue absolutely minimized, feel free to enjoy those long, intense gaming sessions in comfort!

Low Blue Light

AOC Lowblue Light protects you from harmful blue light which, during long sessions, has been shown to cause eye strain, headaches, and sleeping disorders. Our Lowbue Light feature reduces the harmful wavelengths emitted without sacrificing color composition, setting the experience free from the worry of eye damage.

250cd/m² Brightness

Want to use your monitor in a brightly-lit environment, e.g. beside a window catching the sun? The high 250 cd/m² (or 250 nits) brightness achieved by W-LED backlight ensures a good visibility on the display even in these harsh settings. In comparison, the sRGB’s reference luminance level is 80 cd/m².

Specifications
Display information

Screen size (inch) : 23.6
Screen size (cm) : 59.944
Flat / Curved : Flat
Display viewing Area (HxW) in mm : 521,2 x 293,22
Display hardness : 3H
Pixel Pitch : 0.2715
Panel resolution : 1920x1080
Resolution name : FHD
Aspect ratio : 16:9
Panel type : MVA
Brightness in nits : 250
Backlight type : WLED
Refresh rate : 60Hz
Response time GtG : 5 ms
Static contrast ratio : 3000:1
Dynamic contrast ratio : 20M:1
Viewing angle (CR10) : 178/178
Display colours : 16.7 Million
Video Features

Digital signal frequency : 30 -83kHz (H) 50 -76 Hz (V)
Colour space (sRGB) CIE 1931 % : 100
Colour space (Adobe RGB) CIE 1931 % : 76
Colour space (NTSC) CIE 1931 % : 72
Flicker-Free : Yes
Blue Light Technology : Low Blue Light
Cabinet information

Bezel type (front) : 3-sided frameless
Bezel Colour (front) : Black
Bezel finishing (front) : Texture
Cabinet colour (backside) : Black
Cabinet finishing (backside) : Texture
Ergonomic information
Tilt : -5/23
Sustainability

Energy star : Energy star 8
WEEE : Yes
Mercury free : Yes
Recycable packaging material : 100 % recycable
Power Consumption : Power supply
External

Power source : 100 - 240V 50/60Hz
Power consumption on (Energystar test method) in watts : 22
Power consumption standby in watts : 0.5
Power consumption off in watts : 0.5
Energy class : E
Connectivity information : HDMI
                                                            HDMI 1.4 x 1

D-SUB (VGA) : Yes
Audio Output : Headphone out (3.5mm)
Product Dimensions

Product dimensions incl. base (H x W x D) : 417.4(H) x 540.1(W) x 186.8(D)
Packaging dimensions (L x W x H) : 492(H) x 614(W) x 131(D)
Gross weight incl. package (in kg) : 4.2
Net weight excl. package (in kg) : 2.6
Regulatory Compliance
CB : Yes
CE : Yes
TUV-GS-Mark : Yes
ISO 9241-307 : Yes
EAC : Yes
FCC : Yes
Microsoft WHQL : Yes
Pixel policy : ISO 9241-307
What's in the box

HDMI cable : 1.5
Power cable C13 : 1.5
Other information

EAN : 4038986146364
OSD languages : English, French, German, Czech, Russian, Kroatian, Chinese (traditional), Chinese (simplified), Spanish, Portuguese, Italian, Dutch, Swedish, Finnish, Polish, Japanese, Ukranian, Turkish, Korean
MTBF (excluding panel) : 50.000 hours
