2.5-slot Design

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

Dual BIOS

Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.

Auto−Extreme Technology

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact, . The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.

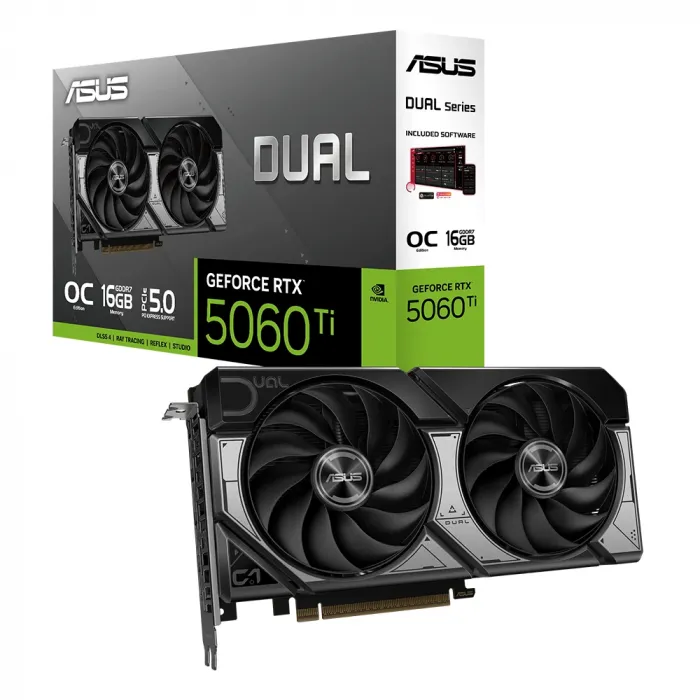

ASUS GeForce RTX™ 5060 Ti OC Edition – 16GB GDDR7

Experience breakthrough performance with the ASUS GeForce RTX™ 5060 Ti, engineered for gamers and creators who demand power, speed, and cutting-edge AI capabilities. With 16GB of ultra-fast GDDR7 memory, PCIe 5.0 support, and advanced cooling in a compact design, this card is ready for 4K gaming, high-performance rendering, and AI-powered workflows.

Core Specifications

• Graphics Engine: NVIDIA® GeForce RTX™ 5060 Ti

• AI Performance: 767 TOPs

• CUDA® Cores: 4608

• Video Memory: 16GB GDDR7

• Memory Interface: 128-bit

• Memory Speed: 28 Gbps

• Bus Standard: PCI Express 5.0

Clock Speeds

• OC Mode: 2632 MHz (Boost Clock)

• Default Mode: 2602 MHz (Boost Clock)

Display & Visuals

• Digital Max Resolution: 7680 × 4320 (8K UHD)

• Multi-Display Support: Up to 4 displays

• Display Outputs:

  • 3 × Native DisplayPort 2.1b

  • 1 × Native HDMI 2.1b

• HDCP Support: Yes, version 2.3

• OpenGL Support: OpenGL® 4.6

Additional Features

• Slot Size: 2.5-slot

• SFF Ready: Compatible with Small Form Factor builds

• Power Connector: 1 × 8-pin

• Recommended PSU: 550W

• NVLink / CrossFire Support: No

Included Accessories

• 1 × SpeedSetup Manual

• 1 × Thank You Card

Software Support

• ASUS GPU Tweak III

• MuseTree

• NVIDIA GeForce Game Ready Driver

• NVIDIA Studio Driver
  (Download all software from the official ASUS support site.)

Dimensions

• Size: 229 × 120 × 50 mm

Note:
Power supply recommendations are based on fully overclocked configurations. For personalized PSU suggestions, visit:
 ASUS PSU Recommendation Tool
Specifications are subject to change without notice. Availability may vary by region.
