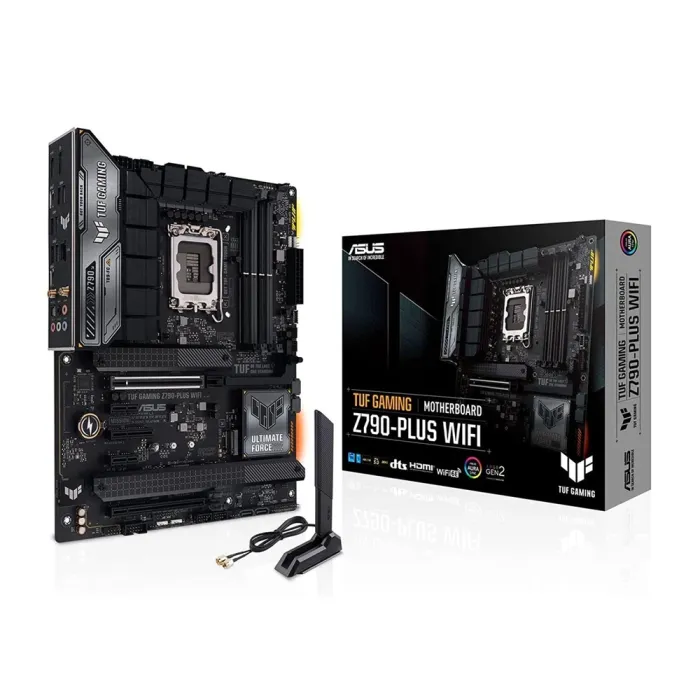

Asus Intel TUF Gaming Z790-PLUS WIFI DDR5 Motherboard LGA 1700

KD118.000
In stock
SKU
36736
ASUS
KIB instalment starting from KWD 9.83 /Month
Read More
To proceed your order with KIB Instalment total cart amount should be above 300 KWD.
Free_Delivery_A
  • Accept payments online
  • 14-day money-back guarantee for products, if the package is not opened, according to the laws of the Ministry of Commerce.
  • Free deliver all orders same day ( If the order placed before 8 pm )
  • 24/7 Customer Support
Express_Delivery_1_

Model No

Asus Intel TUF Gaming Z790-PLUS WIFI DDR5 Motherboard LGA 1700

Part No

90MB1D80-M1EAY0

Chipset

Intel® Z790 Chipset

Form Factor

ATX Form Factor

Socket Compatibility

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.3**

Ethernet

1 x Intel® 2.5Gb Ethernet

TUF LANGuard

Memroy

4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/

4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Storage Compatibility

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

USB Ports Front (Support )

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)*

1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x4 slot

2 x PCIe 3.0 x1 slots

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*"

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio Cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ (USB4®) header

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD Guards

- TUF LANGuard

- Overvoltage Protection

- Safeslot

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- CPU Socket lever protector

- ProCool

- Pre-mounted I/O shield

- SafeDIMM

AURA Sync

- Aura RGB header

- Addressable Gen 2 headers

Package Content

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antenna

1 x TUF GAMING sticker

2 x M.2 Rubber Packages

1 x Screw package for M.2 SSD

Documentation

1 x TUF Certification card

1 x User guide

Product Size ( Dimension )

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

More Information
Product NameAsus Intel TUF Gaming Z790-PLUS WIFI DDR5 Motherboard LGA 1700
BrandASUS
Weight3.500000
Warranty1 Year warranty
