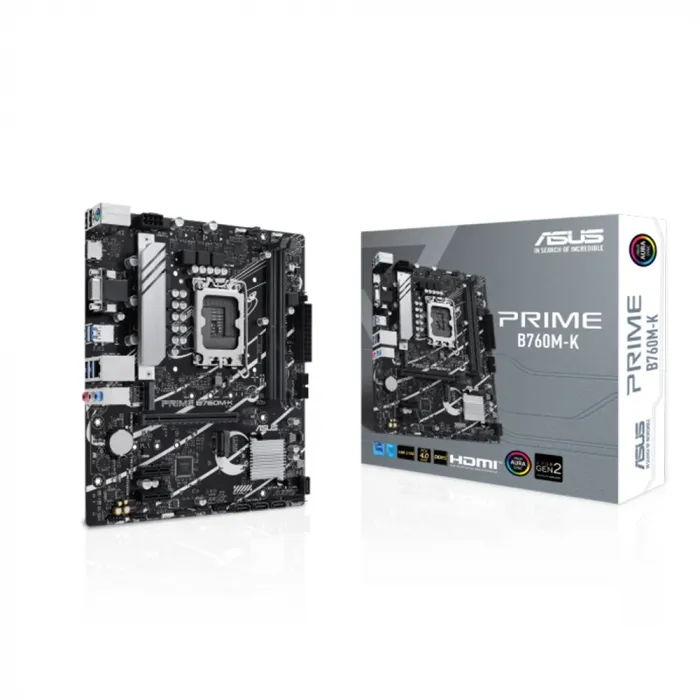

ASUS Prime B760M-K, an Intel® B760 LGA 1700 mATX motherboard

KD49.900
In stock
SKU
34841
ASUS
KIB instalment starting from KWD 4.16 /Month
Read More
To proceed your order with KIB Instalment total cart amount should be above 300 KWD.
Free_Delivery_A
  • Accept payments online
  • 14-day money-back guarantee for products, if the package is not opened, according to the laws of the Ministry of Commerce.
  • Free deliver all orders same day ( If the order placed before 8 pm )
  • 24/7 Customer Support
CategorySpecification
ModelASUS PRIME B760M-K
CPU Support- Intel® Socket LGA1700- 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors- Supports Intel® Turbo Boost Technology 2.0 & Max Technology 3.0 (CPU dependent)
ChipsetIntel® B760
Memory- 2 x DDR5 DIMM slots- Up to 96GB Max Capacity- Supported Speeds: DDR5 4800–8000 (OC)*- Dual Channel Architecture- Supports Intel® XMP*On-Die ECC for DDR5
Integrated Graphics- 1 x VGA port- 1 x HDMI™ 2.1 port (supports 4K@60Hz)**Depends on CPU used
Expansion Slots- 1 x PCIe 4.0 x16 (via CPU)- 2 x PCIe 4.0 x1 (via chipset)
Storage- 2 x M.2 (PCIe 4.0 x4, Key M, 2242/2260/2280)- 4 x SATA 6Gb/s- Supports RAID 0/1/5/10 via Intel® RST
NetworkingRealtek 2.5Gb Ethernet
USB PortsRear I/O:- 4 x USB 3.2 Gen 1 (5Gbps) Type-A- 2 x USB 2.0 Type-AInternal Headers:- 1 x USB 3.2 Gen 1 header (supports 2 ports)- 2 x USB 2.0 headers (supports 3 ports)
Audio- Realtek 7.1 Surround Sound HD Audio CODEC- Supports up to 24-bit / 192kHz playback- Audio shielding, premium capacitors, separate PCB layers- Front panel HD audio module required for 7.1
Back Panel I/O- 4 x USB 3.2 Gen 1 (5Gbps) Type-A- 2 x USB 2.0 Type-A- 1 x VGA port- 1 x HDMI™ port- 1 x Realtek 2.5Gb LAN port- 3 x Audio jacks- 1 x PS/2 combo port
Internal Connectors- 1 x 24-pin ATX power- 1 x 8-pin +12V CPU power- 1 x 4-pin CPU fan- 2 x 4-pin chassis fan- 2 x M.2 slots- 4 x SATA 6Gb/s- 1 x USB 3.2 Gen 1 header (2 ports)- 2 x USB 2.0 headers (3 ports)- 2 x Addressable Gen 2 RGB headers- 1 x Aura RGB header- 1 x Clear CMOS- 1 x COM Port- 1 x Front panel audio (AAFP)- 1 x S/PDIF Out- 1 x Speaker- 1 x SPI TPM (14-1 pin)- 1 x System panel header (10-1 pin)
Special Features- ASUS 5X Protection III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless Steel Back I/O- Q-Design: Q-DIMM, Q-LED Core, Q-Slot- EZ DIY: ProCool- Aura Sync RGB: 1 x Aura RGB + 2 x Gen 2 ARGB headers
Software- Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving, AI Noise Canceling)- AI Suite 3- ASUS CPU-Z- Norton 360 (60-day trial)- WinRAR
BIOS- 128 Mb UEFI AMI BIOS- Features: CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode
ManageabilityWOL by PME, PXE
Accessories- 2 x SATA 6Gb/s cables- 1 x I/O shield- 2 x M.2 anchors- 1 x User guide
OS SupportWindows® 11 / Windows® 10 64-bit
Form FactorMicro-ATX (mATX) – 9.6 x 8.3 in (24.4 x 21.1 cm)
More Information
Product NameASUS Prime B760M-K, an Intel® B760 LGA 1700 mATX motherboard
BrandASUS
Weight3.000000
Warranty1 Year warranty
