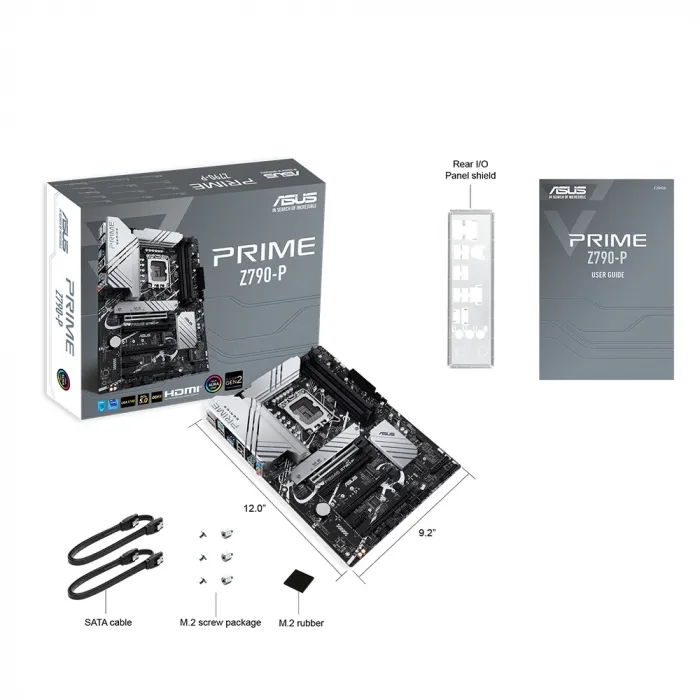

Asus PRIME Z790-P ATX Gaming MotherBoard
AI Cooling ll
AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel processors.
ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors.
VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance
PCIe 5.0 Slot
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.
14 + 1 Teamed Power Stages
14 + 1 power stages combine high-side and low-side MOSFETS and drivers into packages rated for 50 amperes each, delivering power, efficiency, stability and performance to latest Intel processors
Specification
CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
Chipset | Intel Z790 Chipset |
Memory | 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture |
| Supports Intel Extreme Memory Profile (XMP) |
| OptiMem II |
Graphics | 1 x DisplayPort |
| 1 x HDMI port |
Expansion Slots | Intel 13th & 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot |
| Intel Z790 Chipset |
| 3 x PCIe 4.0 x16 slots (support x4 mode) |
| 1 x PCIe 3.0 x1 slot |
Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Intel 13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| Intel Z790 Chipset |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth | Vertical M.2 slot only (Key E, CNVi & PCIe) |
USB | Rear USB (Total 8 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| Front USB (Total 9 ports) |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C) |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to 24-Bit/192 kHz playback |
| Audio Features |
| Audio Shielding |
| Premium audio capacitors |
| Dedicated audio PCB layers |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI port |
| 1 x Vertical M.2 slot (Key E) |
| 1 x Realtek 2.5Gb Ethernet port |
| 3 x Audio jacks |
| 1 x PS/2 Keyboard/Mouse combo port |
Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 3 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector |
| 1 x 4-pin +12V Power connector |
| Storage related |
| 3 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C) |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 2 x Aura RGB headers |
| 1 x Clear CMOS header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (AAFP) |
| 1 x S/PDIF Out header |
| 1 x SPI TPM header (14-1pin) |
| 1 x 20-5pin System Panel header |
| 1 x Thunderbolt (USB4) Header |
Special Features | ASUS 5X PROTECTION III |
| DIGI+ VRM (- Digital power design with DrMOS) |
| LANGuard |
| Overvoltage Protection |
| SafeSlot Core+ |
| Stainless-Steel Back I/O |
| ASUS Q-Design |
| Q-DIMM |
| Q-Slot |
| Q-LED Core |
| ASUS Thermal Solution |
| Flexible M.2 heatsink |
| VRM heatsink design |
| ASUS EZ DIY |
| ProCool |
| Aura Sync |
| Aura RGB headers |
| Addressable Gen 2 headers |
Software Features | ASUS Exclusive Software |
| Armoury Crate |
| Aura Sync |
| Fan Xpert 4 (with AI Cooling II) |
| Power Saving |
| AI Suite 3 |
| TurboV EVO |
| PC Cleaner |
| DIGI+ VRM |
| ASUS CPU-Z |
| Norton 360 Deluxe (60 Days Free Trial) |
| WinRAR |
| UEFI BIOS |
| ASUS EZ DIY |
| ASUS CrashFree BIOS 3 |
| ASUS EZ Flash 3 |
| ASUS UEFI BIOS EZ Mode |
BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
| 2 x SATA 6Gb/s cables |
| Miscellaneous |
| 1 x I/O Shield |
| 1 x M.2 Rubber Package |
| 2 x Screw packages for M.2 SSD |
| Documentation |
| 1 x User guide |
OS | Windows 11, Windows 10 64-bit |
Form Factor | ATX Form Factor |
| 12' x 9.2"( 30.5 cm x 23.4 cm ) |
| Product Name | Asus Prime Z790-p Motherboard |
|---|---|
| Brand | ASUS |
| Weight | 2.250000 |
| Warranty | 1 Year warranty |
