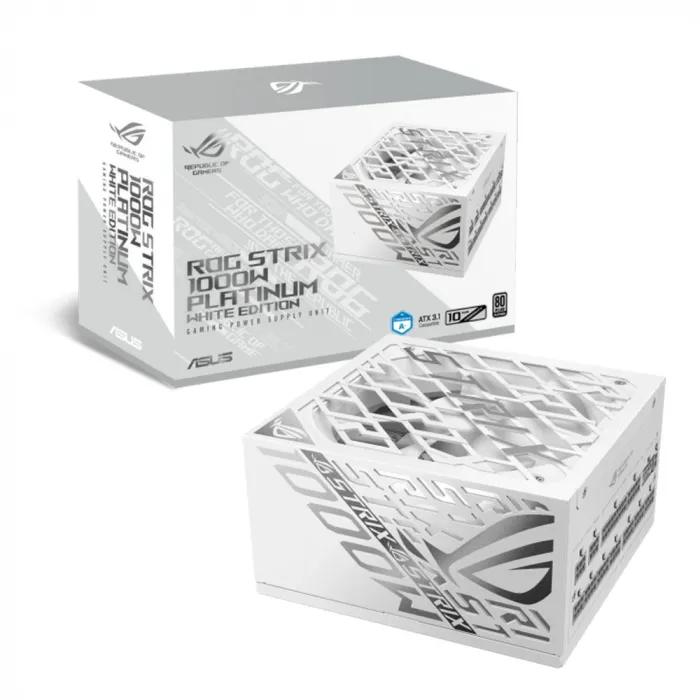

ASUS ROG Strix 1000W Platinum PSU – ATX 3.1, Fully Modular, PCIe 5.0 Ready

Form Factor: Intel ATX12V
ATX Standard: ATX 3.1
PFC Type: Active PFC
Efficiency Certification: 80 Plus Platinum
MTBF: Over 120,000 hours @ 25°C
Noise Certification: Cybenetics A+
0dB Fan Technology:

• Supported: Fan stops completely under low load

• 0dB Fan Button:

  • ON: Fan spins only under load

  • OFF: Fan runs continuously

Electrical Specifications

• AC Input Range: 100-240V AC

• DC Output Voltages: +3.3V / +5V / +12V / -12V / +5Vsb

• Max Load:

  • +3.3V: 25A

  • +5V: 25A

  • +12V: 83.3A

  • -12V: 0.3A

  • +5Vsb: 3A

• Combined Output:

  • +3.3V & +5V: 130W

  • +12V: 1000W

  • -12V: 3.6W

  • +5Vsb: 15W

• Total Power Output: 1000W

Connectors Included

• 1 × 24/20-pin motherboard connector

• 2 × 4+4-pin CPU connectors

• 1 × 16-pin PCIe Gen 5.1 (both PSU & component side)

• 4 × 6+2-pin PCIe connectors

• 6 × SATA connectors

• 3 × Peripheral (Molex) connectors

Package Contents

• 1 × Power Cord

• 1 × 610mm Motherboard Power Cable

• 2 × 1000mm CPU Cables

• 1 × 750mm PCIe Gen 5.1 (16-pin to 16-pin) Cable

• 4 × 750mm PCIe (8-pin to 6+2-pin) Cables

• 2 × SATA 1-to-3 Cables (400+120+120mm)

• 1 × Peripheral 1-to-3 Cable (400+150+150mm)

• 1 × ROG Strix DIY Sticker

• 1 × User Manual

Physical Details

• Dimensions: 160 × 150 × 86 mm

• Weight: 1.81 kg (PSU only)

• Material Compliance: RoHS

• Protection Features:
  OPP, OVP, UVP, SCP, OCP, OTP (Over Power, Over Voltage, Under Voltage, Short Circuit, Over Current, Over Temperature)
