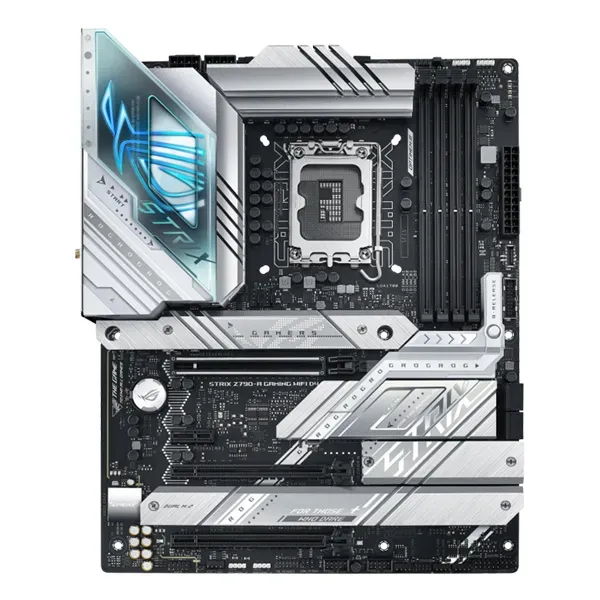

ROG STRIX Z790-A GAMING WIFI D4

Well-versed in style, performance, cooling, and connectivity, the ROG Strix Z790-A exudes well-rounded balance inside and out. A robust VRM topped with stout silver heatsinks comfortably articulates power for the latest Intel® 13th Gen Core processors. PCIe 5.0, WiFi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.

ALL-ROUND PERFORMANCE

Robust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-A at its center.

AI OVERCLOCKING

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

PCIe 5.0

The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.

LEADING CONNECTIVITY

The ROG Strix Z790-A delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

PLAY IN STYLE

Bold aesthetics and Aura Sync RGB controls let the ROG Strix Z790-A shine in every build.

SOFTWARE UTILITIES

A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.

Specifications
CPU

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® Z790 Chipset
Memory

4 x DIMM, Max. 128GB, DDR4 DDR4
5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* Supported memory types, data rate(Speed),and number of DRAM modules vary depending on the CPU and memory configuration,
Graphics

1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots

Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4/x4 mode)
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports 4 additional USB 2.0 ports
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™  header
Special Features

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support
- Support: up to 30W charging
- Output: 5/9V max. 3A, 12V max. 2.5A
- Compatible with PD3.0
Software Features

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator- Aura Sync
- Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber
PackageDocumentation
1 x User guide
Operating System

Windows® 11, Windows® 10 64-bit
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
