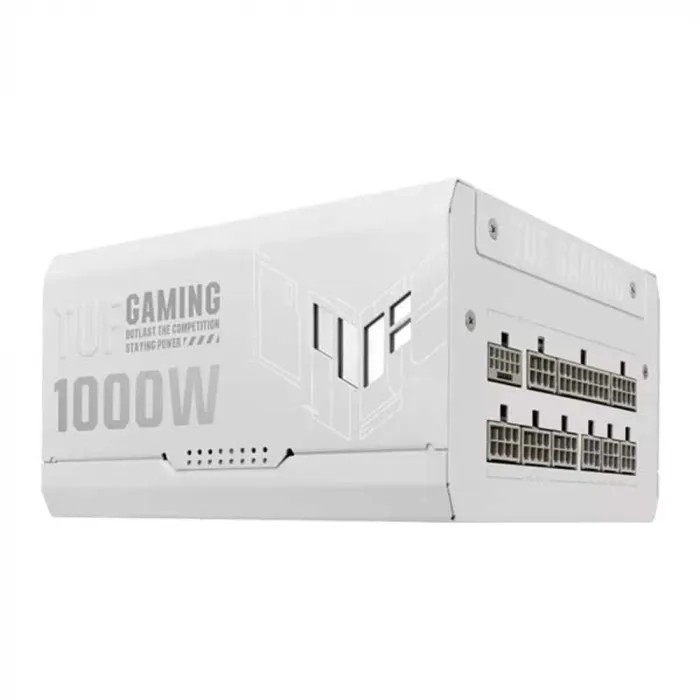

Asus Tuf Gaming 1000w - 80 Plus Gold Fully Modular Power Supply Unit - White

The TUF Gaming 1000W Gold White Edition is an efficient, resilient and dependable PSU that’s engineered for the long haul

Built For The Long Haul

The ASUS TUF Gaming 1000W Gold White Edition packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.​

Durability

TUF Components

Top marks

With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours' lifespan, the ASUS TUF Gaming 1000W Gold White Edition empowers you to build in confidence.​

Dual Ball Fan Bearings

2x longer lifespan

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating

All wrapped up

A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

ENGINEERING

80 Plus Gold Certification

Heart of gold

The TUF Gaming 1000W Gold White Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​

ATX 3.0 Compatible

Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold White Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.​

Axial-tech Fan Design

Better, faster, stronger

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

EXPERIENCE

Fully Modular Etched Cables

Supple ply

The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.

Specifications

• Model : TUF-GAMING-1000G-WHITE

• Intel Form Factor : ATX12V

• PFC Type : Active PFC

• ATX 3.0 : Yes

• Dimensions : 150 x 150 x 86 mm

• Efficiency : 80Plus Gold

• Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

• Hazardous Materials : ROHS

• AC Input Range : 100-240Vac

• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

• Maximum Load : 25A25A83.3A 0.8A 3A

• Combined Load : 130W 130W 1000W 9.6W 15W

• Total Output : 1000W

• Cable Connector : MB 24/20-pin x 1
