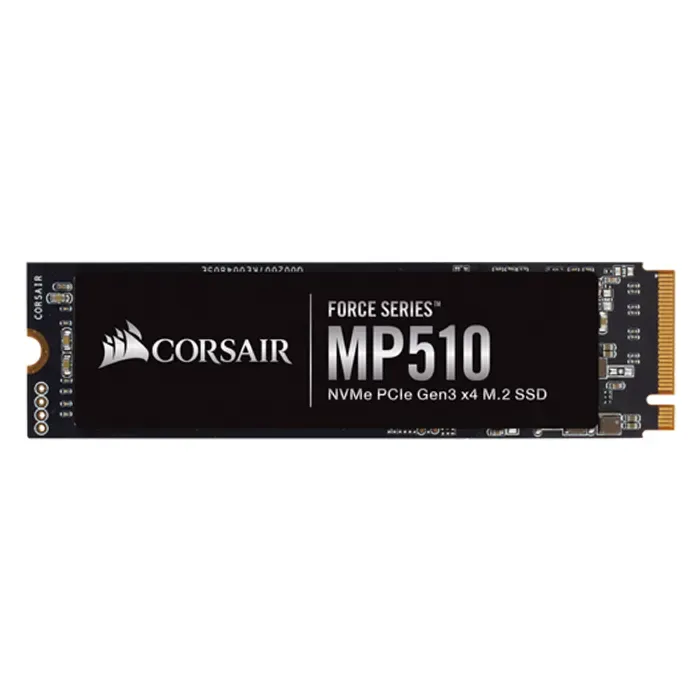

CORSAIR Force Series MP510 1920GB M.2 SSD

The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage performance with blazing fast read speeds of up to 3,480MB/sec.

EXTREME STORAGE PERFORMANCE

All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.

HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE

For simple connection and maximum bandwidth.

HIGH-DENSITY 3D TLC NAND

Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years.

COMPACT M.2 2280 FORM FACTOR

Ultra-compact M.2 2280 size fits directly into your notebook or motherboard with no additional cables or connectors.

COMPATIBILITY

Form Factor: M.2 SSD

Supported Platforms: Intel® 100, 200, 300, X99, X299 Chipsets, AMD Socket AM4 Platform, X399

TECHNICAL SPECIFICATIONS

Endurance: 3,120 TBW

TBW: 3120

.MTBF: 1,800,000 Hours

DEVSLP: L1.2 < 2mW

Encryption: AES 256-bit Encryption

Storage Temperature: -40°C to +85°C

SSD Operating Temperature: 0°C to +70°C

SSD Shock: 1500 G

Storage Humidity: 93% RH (40° C)

Operating Humidity: 90% RH (40° C)

Vibration: 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G

SSD Interface: PCIe Gen 3.0 x4

SSD Max Sequential Read CDM: Up to 3,480MB/s

SSD Max Sequential Write CDM: Up to 2,700MB/s

Max Random Write QD32 IOMeter: Up to 530K IOPS

Max Random Read QD32 IOMeter: Up to 485K IOPS

Form Factor: M.2 2280

Dimension: 80mm x 22mm x 3mm

Application Consumer: Client
