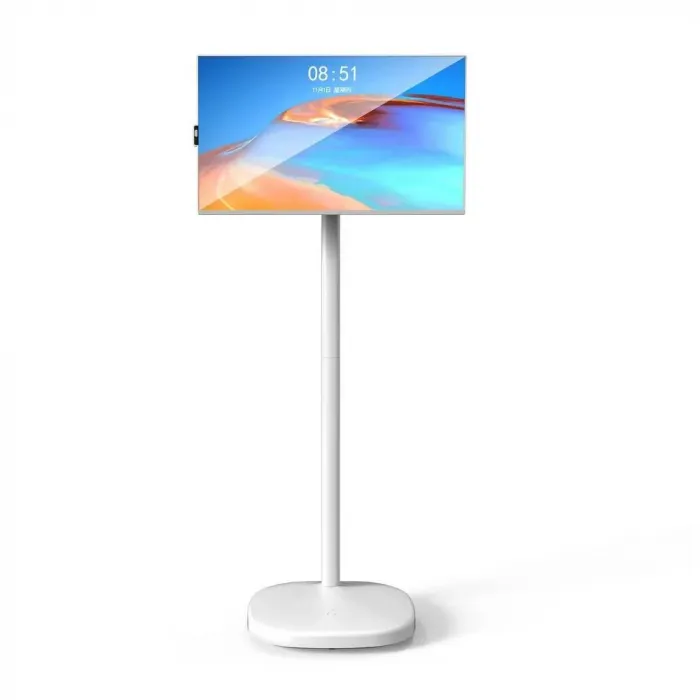

24" Android All-in-One Smart Display – Powerful, Versatile, and Ready for Anything

The 24" Android All-in-One Smart Display is designed to be a powerful, flexible, and sleek solution for both personal and professional environments. With a vibrant 24-inch touchscreen and the latest Android 13 operating system, this smart device seamlessly blends performance, interactivity, and multimedia functionality in one compact package.

Whether you're using it for video conferencing, smart signage, educational purposes, home automation control, or as a kiosk system, this display delivers exceptional responsiveness and ease of use.

Performance & Power

At the heart of this smart display is the MediaTek MTK6769 processor, offering efficient performance and reliable multitasking. Paired with 8GB of RAM and 128GB of internal storage, you'll have more than enough power and space for apps, media files, and real-time applications—whether you're streaming, collaborating, or showcasing content.

Display & Camera

Enjoy crystal-clear visuals on the 24-inch high-resolution screen, large enough for productivity tasks and immersive enough for media playback. The built-in 13MP (1300W) front-facing camera ensures clear video quality for meetings, calls, and content creation, making it ideal for remote work, virtual classrooms, and live broadcasting.

Connectivity & Expansion

Designed with versatility in mind, this smart display features a variety of I/O options including:

• DC Power Input

• 3.5mm Audio Jack for external sound systems or headphones

These interfaces make it compatible with a wide range of accessories and external devices, increasing its functionality across different settings.

Smart Features & Battery Life

Running on Android 13, you’ll have access to the latest apps, UI improvements, and system-level optimizations. Whether you're controlling smart home devices, running presentations, or accessing cloud services, Android 13 provides a smooth and secure experience.

With a built-in 7800mAh battery, you can count on reliable power during extended usage—ideal for mobile use cases, pop-up events, or installations where a continuous power source may not be available.

Ideal Use Cases:

• Video conferencing or remote learning stations

• Retail signage and interactive displays

• Smart home control panels

• Kiosks or POS terminals

• Digital dashboards or media centers

Upgrade your space with a modern, all-in-one solution that combines performance, connectivity, and intelligence—right out of the box.

24" Android All-in-One Smart Display – Full Specifications

Display Specifications

• Effective Display Area: 534.04 mm (H) × 307.76 mm (V)

• Aspect Ratio: 16:9

• Brightness: 350 cd/㎡

• Contrast Ratio: 1200:1

• Color Depth: 8-bit true color (16.7 million colors)

• Backlight Type: ELED

• Viewing Angle: 178°

• Resolution: 1920 × 1080 Full HD

Connectivity & Interfaces

• External Ports: USB 2.0 ×1, HDMI ×1,

  • Type-C (NOT AVAILABLE)

• Wi-Fi: Dual-band (2.4G + 5G), supports 802.11ac/a/b/g/n

• Bluetooth: Bluetooth 5.0

Audio

• Speaker Output: Dual 4W speakers (2×4W)

Power & Energy

• Power Supply (Charging): 16.8V / 3.5A

• Power Consumption (Max): ≤ 40W

• Standby Power: ≤ 0.5W

System Specifications

• CPU: MediaTek MT6769 – 2× Cortex-A75 @ 2.0GHz + 6× Cortex-A55 @ 1.8GHz

• GPU: ARM Mali-G52 (up to 820MHz)

• RAM: 8GB

• Storage (ROM): 128GB

• Operating System: Android 13

• Camera: 13MP (1300W)

• Built-in App Support: Yes

• OSD Languages: English

Touch Screen Features

• Touch Support: Multi-touch, up to 10 points

• Touch Technology: Capacitive

• Channels: 68/96

• Scan Frequency: ≥100KHz

• Wake-Up Response Time: ≤15ms

• Touch Accuracy: ±2.0mm

• Touch Separation: ≥15mm

• Touch Sensitivity: ≤φ6mm (click/slide), uniformity ≤1.5mm

Physical Specifications

• Overall Dimensions (Without Stand): 540 × 320 × 11 mm

• Overall Dimensions (With Stand): 540 × 350 × 1300 mm

• Package Size: 610 × 410 × 270 mm

• Net Weight: 13.6 kg

• Package Weight: 16.5 kg

Mobility & Adjustability

• Height Adjustment: 110mm

• Screen Rotation: 90° clockwise / counterclockwise

• Tilt Adjustment: +15° / -15°

• Base Wheels: 5× 1-inch universal caster wheels

Battery Specifications

• Type: Lithium-ion

• Capacity: 7800mAh (112.3Wh)

• Voltage: 14.4V

• Charging Interface: DC5525

• Max Charging Current: 3.5A

Environmental Conditions

• Operating Temperature: 0℃ to 50℃

• Operating Humidity: 10%RH to 80%RH

• Storage Temperature: -20℃ to 60℃

• Storage Humidity: 10%RH to 90%RH

• Touch Working Temperature: -10℃ to 60℃

• Touch Working Voltage: DC 3.3V

• Touch Power Consumption: ≥1W
