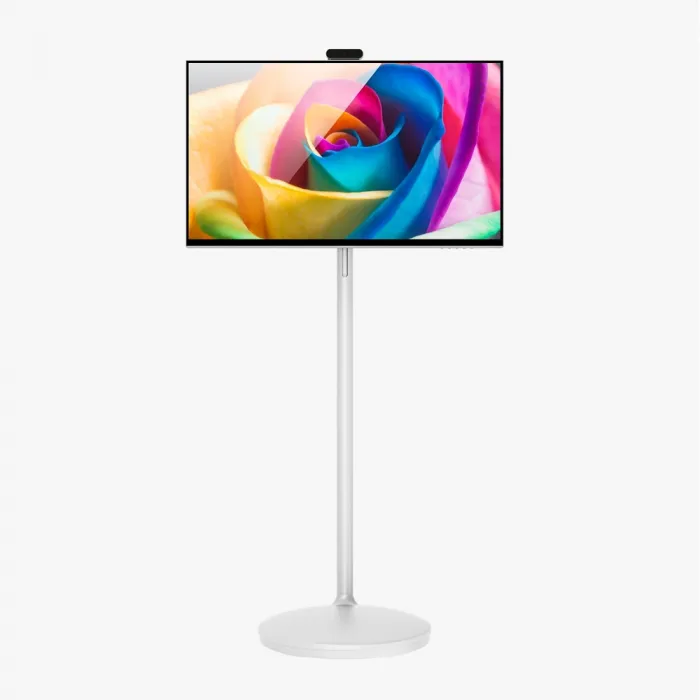

32" Android All-in-One Smart Display – Powerful, Versatile, and Ready for Anything

The 24" Android All-in-One Smart Display is designed to be a powerful, flexible, and sleek solution for both personal and professional environments. With a vibrant 32-inch touchscreen and the latest Android 13 operating system, this smart device seamlessly blends performance, interactivity, and multimedia functionality in one compact package.

Whether you're using it for video conferencing, smart signage, educational purposes, home automation control, or as a kiosk system, this display delivers exceptional responsiveness and ease of use.

Performance & Power

At the heart of this smart display is the MediaTek MTK6769 processor, offering efficient performance and reliable multitasking. Paired with 8GB of RAM and 128GB of internal storage, you'll have more than enough power and space for apps, media files, and real-time applications—whether you're streaming, collaborating, or showcasing content.

Display & Camera

Enjoy crystal-clear visuals on the 32-inch high-resolution screen, large enough for productivity tasks and immersive enough for media playback. The built-in 13MP (1300W) front-facing camera ensures clear video quality for meetings, calls, and content creation, making it ideal for remote work, virtual classrooms, and live broadcasting.

Connectivity & Expansion

Designed with versatility in mind, this smart display features a variety of I/O options including:

• DC Power Input

• 3.5mm Audio Jack for external sound systems or headphones

These interfaces make it compatible with a wide range of accessories and external devices, increasing its functionality across different settings.

Smart Features & Battery Life

Running on Android 13, you’ll have access to the latest apps, UI improvements, and system-level optimizations. Whether you're controlling smart home devices, running presentations, or accessing cloud services, Android 13 provides a smooth and secure experience.

With a built-in 10000mAh battery, you can count on reliable power during extended usage—ideal for mobile use cases, pop-up events, or installations where a continuous power source may not be available.

Ideal Use Cases:

• Video conferencing or remote learning stations

• Retail signage and interactive displays

• Smart home control panels

• Kiosks or POS terminals

• Digital dashboards or media centers

Upgrade your space with a modern, all-in-one solution that combines performance, connectivity, and intelligence—right out of the box.

32" Android All-in-One Smart Display – Technical Specifications

Display Parameters

• Effective Display Area: 698.4 mm (H) × 392.85 mm (V)

• Aspect Ratio: 16:9

• Brightness: 250 cd/㎡

• Contrast Ratio: 1200:1

• Color Depth: 8-bit true color (16.7 million colors)

• Backlight Type: LED

• Viewing Angle: 178° wide

• Resolution: 1920 × 1080 Full HD

Connectivity

• External Interfaces:

  • USB 2.0 ×1

  • Type-C (NOT AVAILABLE)

  • SIM Slot (NOT AVAILABLE)

  • HDMI (NOT AVAILABLE)

• Wi-Fi: Dual-band 2.4G / 5G, 802.11 a/b/g/n/ac

• Bluetooth: Bluetooth 5.0

Audio

• Speaker Output: 2 × 5W stereo speakers

Power Consumption

• Overall Power Usage: ≤40W

• Standby Power: ≤0.5W

• Input Power Supply: 13.5V / 6A (Charging)

System Specifications

• CPU: MediaTek MT6769

  • 2 × Cortex-A75 @ 2.0GHz

  • 6 × Cortex-A55 @ 1.8GHz

• GPU: ARM Mali-G52 (up to 820MHz)

• RAM: 8GB (Optional)

• Internal Storage: 128GB (Standard)

• Camera: 13MP (1300W)

• Operating System: Android 13

• Built-in APK Installation: Supported

• OSD Languages: English

Touch Screen Specifications

• Touch Type: Multi-touch (≤10 points)

• Touch Channels: 68 / 96 channels

• Scanning Frequency: ≥100KHz

• Response Time: ≤15ms

• Touch Accuracy: ±2.0mm

• Linearity Deviation: ±2.0mm

• Minimum Touch Separation: ≥15mm

• Touch Sensitivity:

  • Click ≤ φ6mm

  • Slide ≤ φ6mm

  • Uniform deviation ≤ 1.5mm

• Operating Temp Range: -10℃ to 60℃

• Working Voltage: DC 3.3V

• Touch Power Consumption: ≥1W

Battery Specifications

• Type: Lithium-ion

• Capacity: 10,000mAh

• Nominal Voltage: 12V

• Charging Interface: DC5525

• Max Charging Current: 3.5A

Mechanical & Design

• Device Dimensions (without stand): 715 × 425 × 60 mm

• Device Dimensions (with stand): 715 × 425 × 1330 mm

• Packaging Size: 833 × 230 × 530 mm

• Net Weight: 18 kg

• Gross Weight: 20.1 kg

Mount & Adjustability

• Height Adjustment: 115 mm

• Rotation: 90° clockwise / counterclockwise

• Tilt Range: Up 15° / Down 15°

• Base: 5 × 1-inch universal caster wheels

Environmental Conditions

• Operating Temperature: 0℃ to 50℃

• Operating Humidity: 10%RH to 80%RH

• Storage Temperature: -20℃ to 60℃

• Storage Humidity: 10%RH to 90%RH
