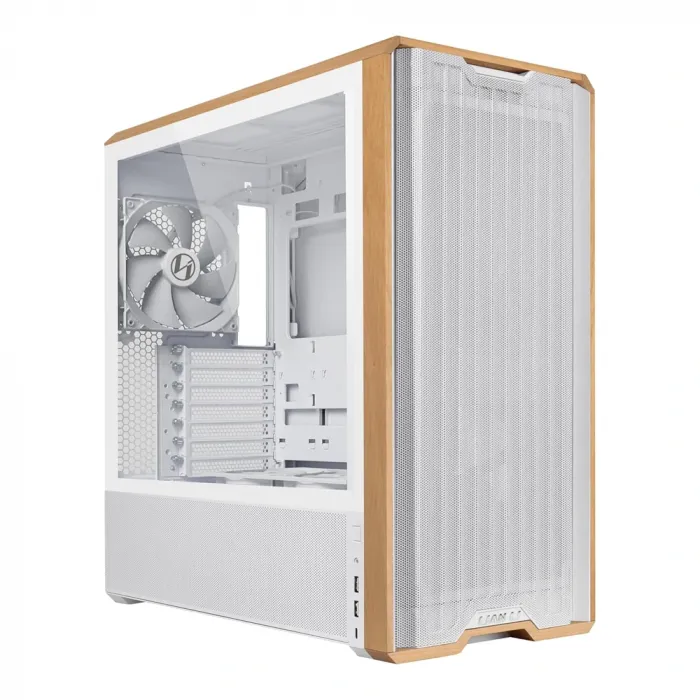

LIAN LI Lancool 217 Mid Tower ATX Gaming Case - White
Cooling and Fan Support
The case includes 2x 170mm front intake fans, 2x 120mm bottom intake fans, and 1x 140mm rear exhaust fan pre-installed.
It supports up to 12x 120mm or 6x 140mm chassis fans, ensuring excellent airflow for high-performance systems.
Drive and Expansion Options
It offers up to 8 bays for 2.5" drives and 4 bays for 3.5" drives, along with 7 PCI expansion slots, providing ample storage and expansion capabilities for gaming and professional setups.
Build Compatibility and Clearances
Supports motherboards up to SSI-EEB size with a maximum GPU cooler length of 380mm, CPU cooler height of 180mm, and PSU length up to 220mm, accommodating large components with ease.
Design and Features
The case features a unique dual orientation PSU mounting design, front and bottom dust filters, premium wood accents, and a clear tempered glass side panel for a stylish and functional build.
Specification
Brand | Lian Li |
Series | Lancool Series |
Colour | White |
Materials | Steel, Plastic, Wood |
Side Panel | Tempered Glass |
Front I/O | 2x USB 3.0 Type-A, 1x USB 3.1 Type-C, 1x Combo Audio, 2x Power Button |
Motherboard Support | SSI-EEB, E-ATX, ATX, Micro-ATX, Mini-ITX |
Expansion Slots | 7 |
Drive Bays | Behind Motherboard: 2x 3.5" or 2x 2.5" |
| Drive Cage (2x): 1x 3.5" & 1x 2.5" plus 1x 3.5" or 1x 2.5" |
| PSU Shroud: 1x 2.5" |
PSU Support | Standard Mode: ATX (Under 220mm) |
| Rotated Mode: ATX (Under 180mm) |
Dimensions | Depth 482mm x Width 238mm x Height 503mm |
Weight | TBD |
Pre-Installed Fans | Front: 2x 170mm Performance PWM Fans |
| Bottom (Above PSU Shroud): 2x 120mm Performance PWM Fans |
| Rear: 1x 140mm Performance PWM Fan |
Fan Support | Front: 2x 170mm or 3x 140mm or 3x 120mm |
| Top: 3x 120mm or 2x 140mm |
| Rear: 1x 120mm or 1x 140mm |
| Bottom (Above PSU Shroud): 3x 120mm |
| Bottom (Below PSU Shroud): 2x 120mm |
Radiator Support | Top: 360mm / 280mm / 240mm |
Clearance | Motherboard Tray Max Width: 330mm |
| CPU Cooler Height Limitation: 180mm |
| GPU Length Limitation: 380mm |
Cable Management | Yes |
Radiator Thickness | 85mm Max |
