Model Name

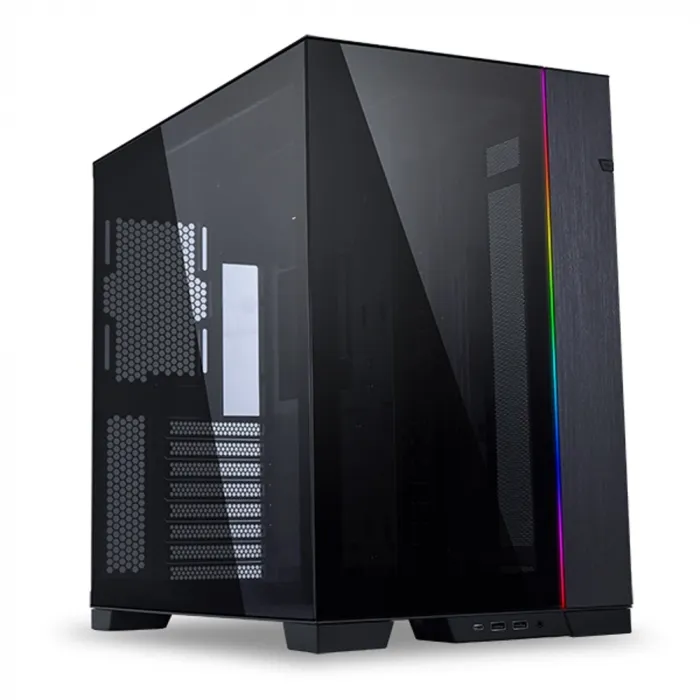

O11 DYNAMIC EVO

Dimension

(D)465mm × (W)285mm × (H)459mm

Material

4mm Aluminum

4mm Tempered Glass

1mm Steel Structure

Motherboard Support

E-ATX (width: under 280mm)/ATX /M-ATX/ITX

PSU Support

220mm

Fan Support

Top: 120mm × 3 or 140mm × 2

Side: 120mm × 3 or 140mm × 2

Bottom: 120mm × 3 or 140mm × 2

Rear: 120mm × 1

On Drive Cage: 60mm × 1

Radiator Support

Top: 360mm × 1 or 280mm × 1

*Total max thickness: 87.5mm

Side: 360mm × 1 or 280mm × 1

*Inner scenario total max thickness:

83mm(120mm fan on top and bottom)

63mm(140mm fan on top and bottom)

*Outer scenario total max. thickness：

120mm(120mm fan on top and bottom)

100mm(140mm fan on top and bottom)

Bottom: 360mm × 1

*Total max thickness: 87.5mm

Drive Support

Bottom：2.5” SSD × 4 or 3.5” HDD × 2

Side：2.5” SSD × 4 or 3.5” HDD × 2

Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1

Cable Management Bar：2.5” SSD × 2

*Only 9 sets of 2.5” SSD mounting pads are provided

GPU Length Clearance

426 mm

CPU Height Clearance

167 mm

Expansion Slots

8

I/O Ports

2 × USB 3.0

1 × USB 3.1 TYPE-C,

1 × HD AUDIO/ MIC

LED Color and Mode button

Reset Button

Power Button

Dust Filter

Bottom × 1
