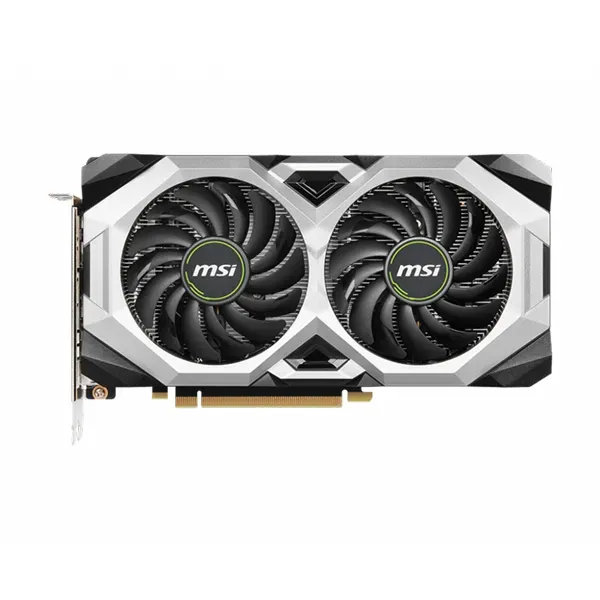

MSI GeForce RTX 2060 VENTUS GP OC 6GB Graphics Card

MSI GeForce RTX 2060 VENTUS GP OC 6GB Graphics Card

Premium Design

A fresh new dual fan design, VENTUS proudly displays its industrial shapes in neutral colors to fit any build.

TORX FAN 2.0

Using two of the award-winning TORX Fans 2.0 with double ball bearings, MSI VENTUS graphics cards provide years of top-notch cooling performance.

DIRECT CONTACT HEAT PIPES

Up to 6mm thick copper heat pipes at the bottom maximize heat transfer.

Premium Thermal Compound

Every detail counts when it comes to creating the ultimate thermal design, which is why VENTUS uses a premium thermal compound to make sure it outlives the competition.

Amplified PCB

Using thicker layers of copper enables faster and cleaner signal transmission for sustained performance.

WE'VE GOT YOUR BACK

A sturdy backplate helps to strengthen the graphics card and complements the design to look even better.

DRAGON CENTER

To improve the experience with MSI software, we have embarked on a quest to consolidate as much of our software as possible into one unified suite. We are excited to share the first version of this gargantuan project which will be known as Dragon Center.

Eventually Dragon Center will be the only MSI software you need to install for full functionality of your MSI Desktop, Graphics Card, Motherboard or even Gaming Gear. Thanks to a modular concept, the application will automatically detect new MSI hardware once added. Based on the hardware in your system it will offer the relevant software drivers for your specific setup.

Specifications
Model Name : GeForce RTX 2060 VENTUS GP OC
Graphics Processing Unit : NVIDIA® GeForce RTX™ 2060
Interface : PCI Express x16 3.0
Core Clocks : Boost: 1710 MHz
CUDA® CORES : 1920 Units
Memory Speed : 14 Gbps
Memory : 6GB GDDR6
Memory Bus : 192-bit
Output : DisplayPort x 3 (v1.4a)
                            HDMI x 1 (Supports [email protected] as specified in HDMI 2.0b)

HDCP Support : 2.2
Power consumption : 160 W
Power connectors : 8-pin x 1
Recommended PSU : 500 W
Card Dimension (mm) : 231 x 128 x 42 mm
Weight (Card / Package) : 720 g / 1170 g
DirectX Version Support : 12 API
OpenGL Version Support : 4.6
Maximum Displays : 4
VR Ready : Y
G-SYNC® technology : Y
Digital Maximum Resolution : 7680x4320
