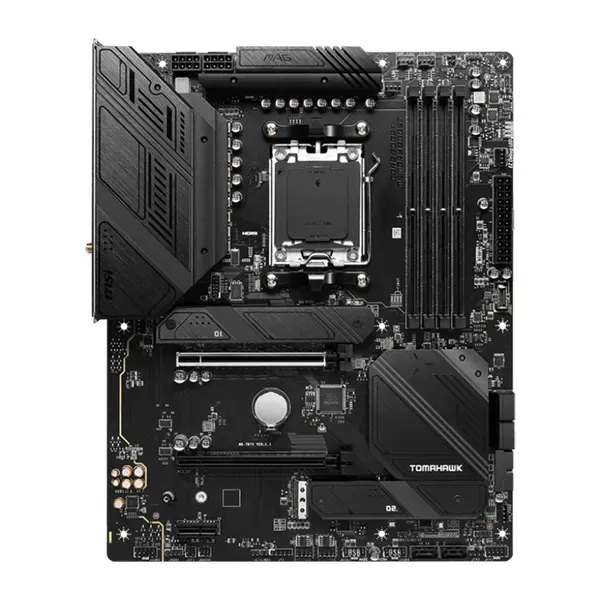

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard

The MAG series fights alongside gamers in pursuit of honor.

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

FAST AND FUTURE-READY STORAGE

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G

Using USB 3.2 devices has never been faster! MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

USB FRONT TYPE-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

Specifications
Chipset  :   AMD B650
CPU SUPPORT  :   Supports AMD Ryzen™ 7000 Series Desktop Processors
                                                 Socket AM5

Memory  :   4x DDR5, Maximum Memory Capacity 128GB
                                  Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz

Onboard Graphics  :    1x HDMI™
                                                       1x DisplayPort
                                                        Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
                                                        Support DP 1.4, maximum resolution of 8K 60Hz*
        *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT   :  2x PCI-E x16 slot
                                                    Support x16/ x4
                                                    1x PCI-E x1 slot
                                                    PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
                                                    PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)
                                                    PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)

Storage   :  3x M.2 slot
                                  M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
                                  M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
                                  M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
                                  6x SATA 6G port

RAID  :   Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
                            Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
          * SATA_A1_A2 do not support RAID function.

USB  :   2x USB 2.0 (Rear)
                            4x USB 2.0 (Front)
                            4x USB 3.2 Gen1 Type A (Rear)
                            2x USB 3.2 Gen1 Type A (Front)
                            3x USB 3.2 Gen2 Type A (Rear)
                            1x USB 3.2 Gen2 Type C (Front)
                            1x USB 3.2 Gen2x2 Type C (Rear)

LAN  :   Realtek® RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH  :   AMD Wi-Fi 6E
                                                                    The Wireless module is pre-installed in the M.2 (Key-E) slot
                                                                    Supports MU-MIMO TX/RX
                                                                    Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
                                                                    Supports 802.11 a/ b/ g/ n/ ac/ ax
                                                                    Supports Bluetooth® 5.2**
          "* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
          ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11."

Audio  :   Realtek® ALC4080 Codec
                             7.1-Channel High Performance Audio
                            Supports S/PDIF output
                            Supports up to 32-Bit/384 kHz playback on front panel

Internal I/O  :   1x Power Connector(ATX_PWR)
                                        2x Power Connector(CPU_PWR)
                                        1x CPU Fan
                                        1x Pump Fan
                                        6x System Fan
                                        2x Front Panel (JFP)
                                        1x Chassis Intrusion (JCI)
                                        1x Front Audio (JAUD)
                                        1x Tuning Controller connector(JDASH)
                                        2x Addressable V2 RGB LED connector (JARGB_V2)
                                        2x RGB LED connector(JRGB)
                                        1x TPM pin header(Support TPM 2.0)
                                        4x USB 2.0
                                        2x USB 3.2 Gen1 Type A
                                        1x USB 3.2 Gen2 Type C

LED FEATURE  :   4x EZ Debug LED
BACK PANEL PORTS
                                                DisplayPort 1.4
                                                2.5G LAN Port
                                                USB 2.0 Port
                                                USB 3.2 Gen 1 5Gbps Type-A
                                                Wi-Fi / Bluetooth Antenna
                                                HD Audio Connectors
                                                Flash BIOS Button
                                                HDMI™ 2.1 Port
                                                USB 3.2 Gen 2 10Gbps Type-A
                                                USB 3.2 Gen 2x2 20Gbps Type-C
                                                Optical S/PDIF OUT

OPERATING SYSTEM  :   Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension  :   ATX
                                                243.84mmx304.8mm
