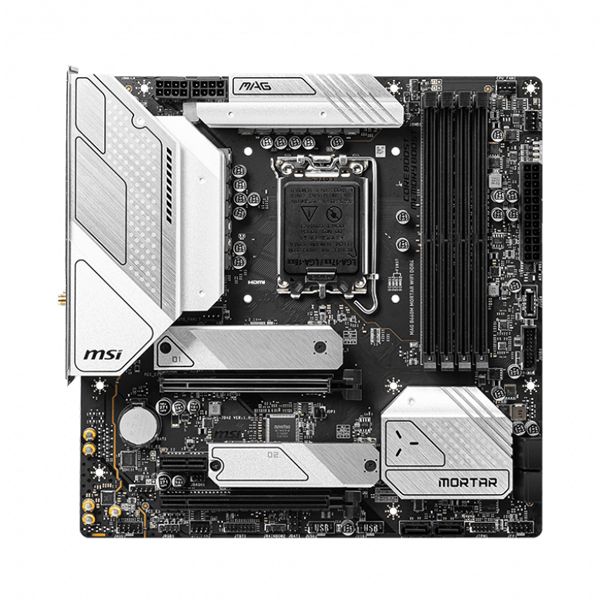

MSI MAG B660M MORTAR WIFI DDR4 Motherboard

KWD88.000
In stock
SKU
911-7D42-004

Free Delivery for Kuwait

Same Day Delivery for all order placed before 8pm!

  • Accept payments online
  • 14 Days Money back guarantee for physical products
  • Ships items quickly
  • Deliver all orders same day (order placed before 8pm)
  • Customer Support
Chat in WhatsApp

Share

MSI MAG B660M MORTAR WIFI DDR4 Motherboard

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

LIGHTNING GEN 4 M.2

Utilizing 12th Gen Intel processors, MSI B660 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

FAST AND FUTURE-READY STORAGE

MSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
MSI LAN MANAGER

    - Automatically prioritizes games above other applications -
    - Allows you to change applications' traffic priority -
    - Allows you to customize bandwidth for each application

Specifications

  • CPU (Max Support) : i9
  • Socket : 1700
  • Chipset : Intel® B660 Chipset
  • DDR4 Memory : 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
  • Memory Channel : Dual
  • DIMM Slots : 4
  • Max Memory (GB) : 128
  • PCI-E x16 : 2
  • PCI-E x1 : 1
  • SATAIII : 6
  • M.2 Slot : 2
  • RAID : 0/1/5/10
  • LAN : 1x Realtek® 8125BG 2.5G LAN
  • WiFi & Bluetooth : Intel® Wi-Fi 6 module
  • USB 3.2 ports (Front) : 1(Gen 2, Type C), 2(Gen 1, Type A)
  • USB 3.2 ports (Rear) : 1(Gen 2x2, Type C), 3(Gen 2, Type A)
  • USB 2.0 ports (Front) : 4
  • USB 2.0 ports (Rear) : 4
  • Audio ports (Rear) : Realtek® ALC1200 Codec
  • DisplayPort : 1
  • HDMI : 1
  • DirectX : 12
  • Form Factor : mATX
  • CrossFire : Yes
  • Operating System : Support for Windows® 11 64-bit, Windows® 10 64-bit
