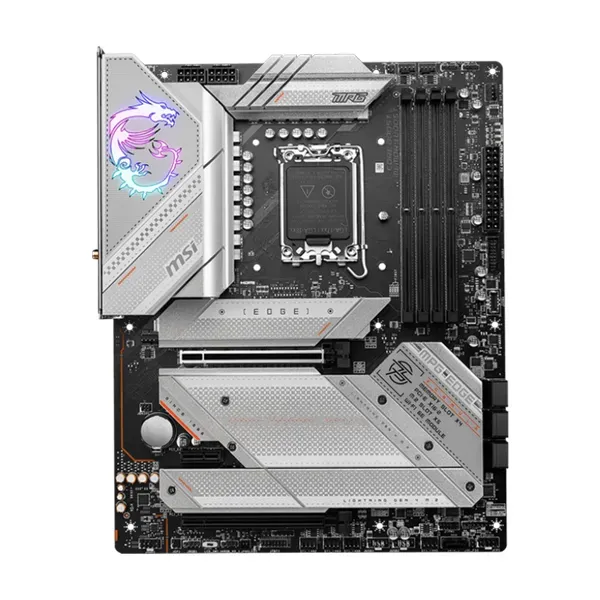

MSI MPG Z790 EDGE WIFI DDR5 ATX Motherboard

MPG Z790 EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

16+1+1 Duet Rail Power System

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z790 EDGE WIFI is ready for the challenge of high-end processors.

The patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation.

Memory

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790 EDGE WIFI is ready to deliver the world class memory performance.

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Glow your pc

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

Wi-Fi 6E
Bluetooth 5.3
2.5G LAN
Exclusive magnetic antenna
Specifications
Chipset   :  INTEL Z790
CPU SUPPORT   : Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
                                                LGA 1700

Memory   :  4x DDR5, Maximum Memory Capacity 128GB
                                  Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz

                                    Max. overclocking frequency:

                                    • 1DPC 1R Max speed up to 7200+ MHz
                                    • 1DPC 2R Max speed up to 6600+ MHz
                                    • 2DPC 1R Max speed up to 6400+ MHz
                                    • 2DPC 2R Max speed up to 5600+ MHz
                                    Supports Intel® XMP3.0 OC
                                    Supports Dual-Controller Dual-Channel mode
                                    Supports non-ECC, un-buffered memory

Onboard Graphics : 1x HDMI™
                                                    1x DisplayPort

                                                    Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

                                                    Support DP 1.4, maximum resolution of 8K 60Hz*
           *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT : 2x PCI-E x16 slot
                                                1x PCI-E x1 slot
                                                PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
                                                PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
                                                PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

Storage : 5x M.2 slot
                                M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
                                M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
                                M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
                                M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
                                M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
                                7x SATA 6G port

RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
                            Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

                            * SATA_A1~A2 do not support RAID function.

USB : 4x USB 2.0 (Front)
                        4x USB 3.2 Gen1 Type A (Rear)
                        2x USB 3.2 Gen1 Type A (Front)
                        4x USB 3.2 Gen2 Type A (Rear)
                        1x USB 3.2 Gen2 Type C (Rear)
                        1x USB 3.2 Gen2 Type C (Front)
                        1x USB 3.2 Gen2x2 Type C (Rear)

LAN : Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH : Intel® Wi-Fi 6E
                                                                The Wireless module is pre-installed in the M.2 (Key-E) slot
                                                                Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
                                                                Supports 802.11 a/ b/ g/ n/ ac/ ax
                                                                Supports Bluetooth® 5.3, FIPS, FISMA
       * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11."

Audio : Realtek® ALC4080 Codec
                            7.1-Channel USB High Performance Audio
                            Supports up to 32-Bit/384 kHz playback on front panel

Internal I/O : 1x Power Connector(ATX_PWR)
                                     2x Power Connector(CPU_PWR)
                                    1x CPU Fan
                                    1x Pump Fan
                                    6x System Fan
                                    2x Front Panel (JFP)
                                    1x Chassis Intrusion (JCI)
                                    1x Front Audio (JAUD)
                                    1x TBT connector (JTBT, supports RTD3)
                                    1x Tuning Controller connector(JDASH)
                                    3x Addressable V2 RGB LED connector (JARGB_V2)
                                    1x RGB LED connector(JRGB)
                                    1x TPM pin header(Support TPM 2.0)
                                    4x USB 2.0
                                    2x USB 3.2 Gen1 Type A
                                    1x USB 3.2 Gen2 Type C

LED FEATURE : 4x EZ Debug LED
                                            1x EZ LED Control switch

BACK PANEL PORTS
                                        Display Port
                                        USB 3.2 Gen 1 5 Gbps (Type-A)
                                        USB 3.2 Gen 2 10Gbps (Type-A)
                                        2.5G LAN
                                        Wi-Fi / Bluetooth
                                        Audio Connectors
                                        HDMI™
                                        Clear CMOS / Flash BIOS
                                        USB 3.2 Gen 2 10Gbps (Type-A)
                                        USB 3.2 Gen 2 10Gbps (Type-C)
                                        USB 3.2 Gen 2x2 20Gbps (Type-C)
                                        Optical S/PDIF Out

OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension : ATX
                                               243.84mmx304.8mm
