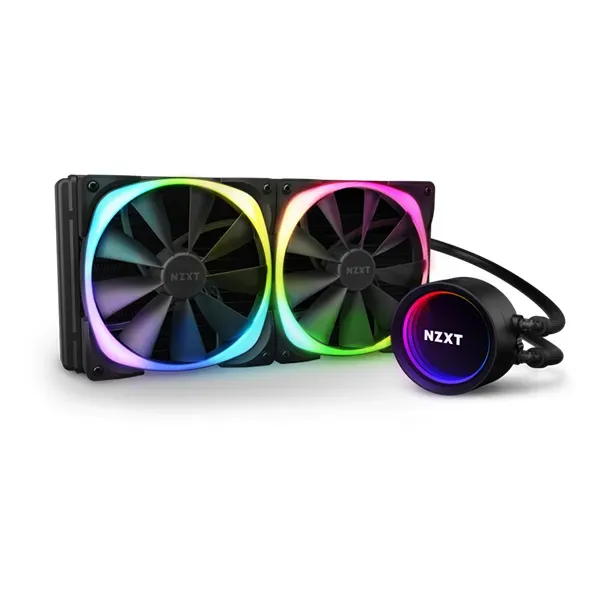

NZXT Kraken X63 RGB 280mm RGB Liquid Cooler

NZXT Kraken X63 RGB - 280mm Aer RGB Liquid Cooler

The Kraken X63 RGB is a stunning must-have for any build with the addition of NZXT RGB fans. With a re-designed cap and larger infinity mirror ring LED, the Kraken X63 RGB delivers an amazing experience in luminous liquid cooling.

BIGGER AND BRIGHTER

A 10% bigger LED ring allows for more vivid RGB. A rotatable top accommodates re-orienting the logo no matter the direction the cooler is installed.

RGB READY

CAM provides sophisticated controls with an intuitive, user-friendly interface. Now with better sync for lighting across all NZXT RGB devices, full CAM integration allows you to manage your Kraken’s performance with precision, making adjustments with the click of a button. RGB channel easily integrates with any NZXT RGB accessory, including AER RGB 2 fans.

INCREDIBLE PERFORMANCE

The Aer P radiator fans are designed for liquid-cooling perfection. It features a chamfered intake and fluid dynamic bearing that provides silent operations, durability, and powerful cooling performance.

SIMPLE INSTALLATION

Fine nylon mesh sleeves strengthen the rubber tubing, providing durability and protection against mishandling. Adjust the orientation of the pump head* to fit the needs of your motherboard without affecting the direction of the logo.

Note: * The display orientation can be changed in 30° increments to reduce interference with other components.

LIGHT YOUR WAY

Customize the look of any CAM-powered Kraken pump with the most advanced RGB lighting effects and our signature infinity mirror. Both the Kraken X and M series include numerous customizable presets and reactive modes to respond to changes in system conditions, such as temperatures and audio output.

Specifications
Water Block

Dimensions: Diameter: 80mm; H: 55mm
Material: Block: copper; Housing: plastic
Pump

Motor Speed: 800 – 2,800 + 300 RPM
Power: 12VDC, 0.3A
Radiator

Dimensions: 143 x 315 x 30mm
Material: Aluminum
Tube

Length: 400mm
Material: Ultra-low evaporation rubber with nylon braided sleeve


Cap

Material: Plastic and brass
Rotation Orientation: 360° with 30° increments
LEDs: 9 LEDs
NZXT RGB Channel Output Voltage: 5V DC
NZXT RGB Channel Output LED Qty.: Up to four LED strips - 10 LEDs per strip, Up to five Aer RGB fans, Up to six NZXT RGB accessories
Fans

Model: Aer RGB 2 140
Quantity: 2
Dimensions: 140 x 140 x 26mm
Speed: 500 - 1,500 + 300 RPM
Air Flow: 30.39 – 91.19 CFM
Air Pressure: 0.17 - 1.52mm-H2O
Noise: 22-33dBA
Bearing: Fluid dynamic bearing
Power Consumption: 12V DC, 0.32A, 3.8W
Connector: 4-pin PWM
Life: 60,000 hours / 6 years
Model Number
RL-KRX63-R1


EAN
5060301696444
UPC
815671015167
Compatible Socket & CPU

Intel Socket LGA 1200, 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066
Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
AMD Socket AM4, sTRX4*, TR4* (*Threadripper bracket not included)
AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper
