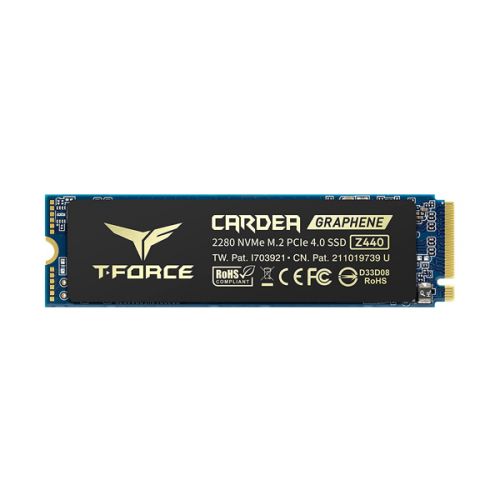

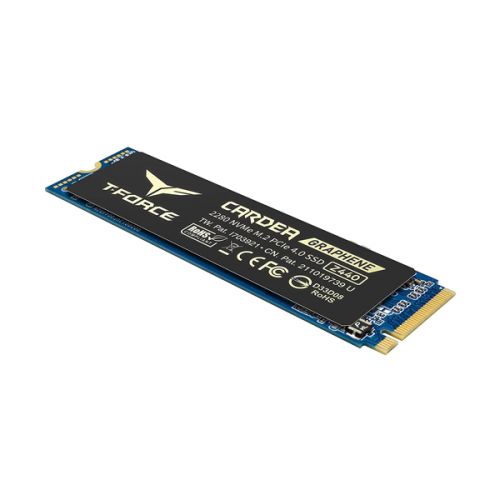

TEAMGROUP T-Force Cardea Zero Z440 1TB NVMe PCIe
The aesthetic of thinness – releasing the ultimate performance
Z440 uses the latest and fastest PCIe Gen4x4 interface and complies with the NVMe 1.3 standard. With <1mm thin of graphene copper foil, the sequential read/write speed is up to 5,000/4,400 MB/s. In addition, T-FORCE’s exclusive totem patterns let gamers enjoy the ultimate aesthetics of both outside and inside.
3D NAND + PCIe4.0 – capacity and performance progress greatly
The 3D flash memory is stacked in a three-dimensional way to offer up to 1TB/2TB of large storage.
In addition, it is downward compatible with the PCIe 3.0 platform, comprehensively improving gamer’s gaming experience and satisfying the demand for various large-scale data computing tasks.
Well-proportioned – transfer heat source together
The <1mm thin graphene copper foil thermal conductive heat spreader can effectively eliminate both waste heat and device interference during installation. It can be installed on all major motherboard and M.2 slots. Even without the cooling module of the motherboard, it can still transfer heat source effectively, allowing gamers to enjoy high-speed performance.
Three heat dissipation elements - the combination of graphene and copper can provide excellent heat dissipation
After T-FORCE’s long-term and rigorous internal laboratory tests and burn-in test, the patented graphene copper foil thermal conductive material has been developed and is able to provide more than 9% of cooling effect during actual continuous reading/writing for over 3 hours. Thermal conduction (graphene), thermal radiation (graphene) and thermal capacity (copper), these three elements can perfectly showcase an excellent heat dissipation performance.
Smart management technology – trustworthy reliability
The built-in smart algorithm management mechanism has functions such as GC (garbage collection), TRIM command, LDPC (Low Density Parity Check Code) error correction mechanism, E2E Data Protection, etc. which are able to help in operation efficiency, prolong the service life of the SSD, while also allowing gamers to ensure data security, maximize its performance and the stability of data transfer.
CARDEA ZERO Z440
PCIe Gen4 x4 with NVMe 1.3
1TB / 2TB
0˚C ~ 70˚C
-40˚C ~ 85˚C
1TB / >1,800TB
2TB / >3,600TB
Crystal Disk Mark:
1TB Read/Write: up to 5,000/4,400 MB/s
2TB Read/Write: up to 5,000/4,400 MB/s
1TB Read/Write: 750K/750K IOPS Max
2TB Read/Write: 750K/750K IOPS Max
80.0(L) x 22.0(W) x 3.7(H) mm
RH 90% under 40°C (operational)
- Windows 10 / 8.1 / 8 / 7 / Vista
- Linux 2.6.33 or later
