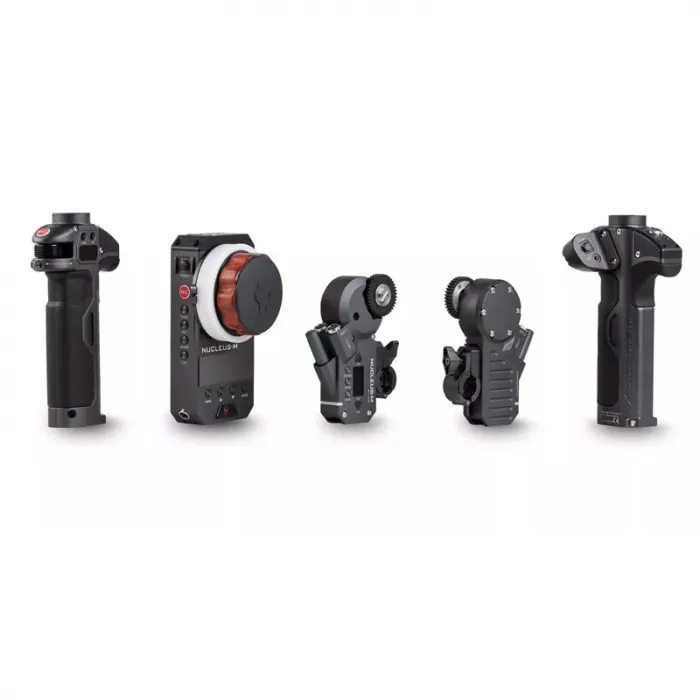

The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.

The Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod. The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings.

Features

Brushless motor with an integrated motor drive

Cine-lens standard 0.8 Mod, 35-tooth, 32-pitch gear

Motor clamps onto 19mm or 15mm rods (with included bushing)

Power via separately available D-Tap cable or daisy-chain to additional motors

Automatic and manual calibration

For focus, iris, or zoom control

High, medium, and low torque settings

Status display window
