Keyboard Instructions

Please read before use.

Key Features:

• Caps Lock / Power / Wireless / Battery Indicator Lights

• Charging Port & ON/OFF Switch

• Pencil Slot & Auto Sleep/Wake

Bluetooth Connection (Single/Three-Channel):

1. Turn on the keyboard (green light flashes for 1 second). If the light is red, charge immediately.

2. Press Fn + C for 2 seconds to enter pairing mode (blue light flashes for ~120s).

3. On your device, search for "Wireless Keyboard" and connect.

4. After successful pairing, the light turns off and the keyboard is ready to use.

5. Auto Sleep: No activity for 10 minutes puts the keyboard to sleep. Wake it by pressing any key.

Three-Device Mode:

• Use Fn + 1 / 2 / 3 to switch between paired devices.

• To pair a new device, press the desired number key + Fn + C to re-enter pairing mode.

Disconnecting:

• Clear the pairing info from your device or turn off the keyboard.

Charging Status:

• Red (slow blink): Low battery

• Red (solid): Charging

• Green (solid): Fully charged — unplug for safety

Function Keys:

• Blue icons require Fn key.

• Some functions may vary with system/device updates — refer to actual performance if inconsistent.

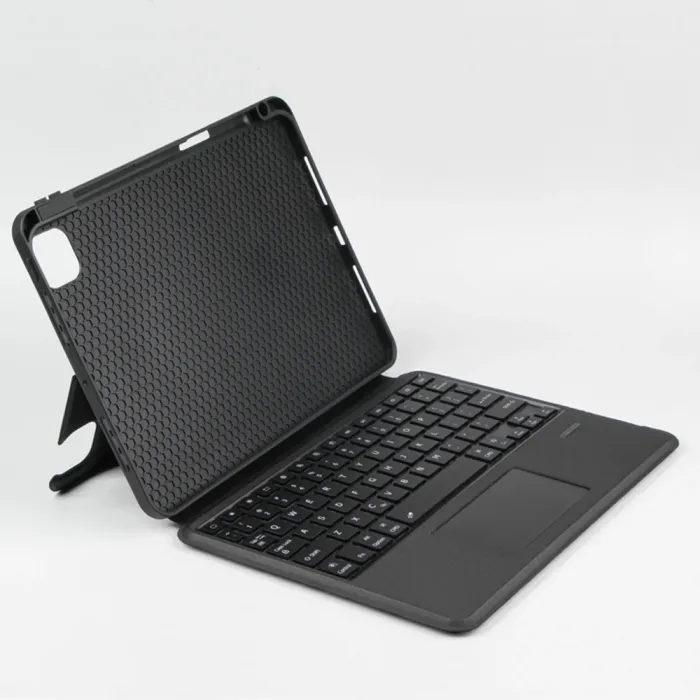

  Product Name: Detachable Keyboard
  Battery Capacity: 500mAh
  Wireless Range: >10 meters
  Charging Time: 2–3 hours
  Bluetooth Version: 5.0
  Operating Voltage: 3V–5V
  Charging Current: <200mA
  Standby Time: Over 30 days (fully charged)
  Continuous Use Time:

  • Up to 3 hours (with backlight on)

  • Up to 25 hours (with backlight off)
    Backlight: RGB Backlit Keyboard Included
