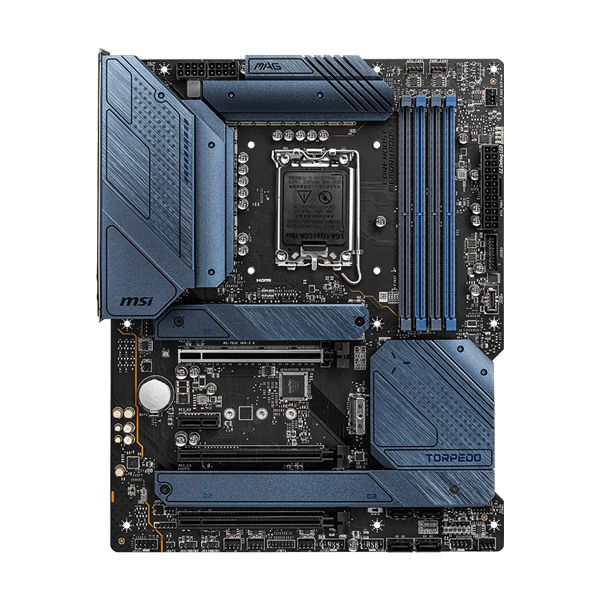

MSI MAG Z690 TORPEDO ATX Motherboard

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

FAST AND FUTURE-READY STORAGE

MSI Z690 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

- Automatically prioritizes games above other applications -

- Allows you to change applications' traffic priority -

- Allows you to customize bandwidth for each application -

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Specifications

• CPU (MAX SUPPORT) : i9

• SOCKET : 1700

• CHIPSET : Intel® Z690 Chipset

• DDR5 MEMORY : 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz

• MEMORY CHANNEL : Dual

• DIMM SLOTS : 4

• MAX MEMORY (GB) : 128

• PCI-E X16 : 3

• PCI-E X1 : 1

• SATAIII : 6

• M.2 SLOT : 4

• RAID : 0/1/5/10

• LAN : 1x Intel® I225-V 2.5G LAN

• USB 3.2 PORTS (FRONT) : 1(Gen 2, Type C), 2(Gen 1, Type A)

• USB 3.2 PORTS (REAR) : 1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A)

• USB 2.0 PORTS (FRONT) : 4

• USB 2.0 PORTS (REAR) : 2

• AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek® ALC4080 Codec)

• DISPLAYPORT : 1

• HDMI : 1

• DIRECTX : 12

• FORM FACTOR : ATX

• CROSSFIRE : Y

• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
