Product Description:

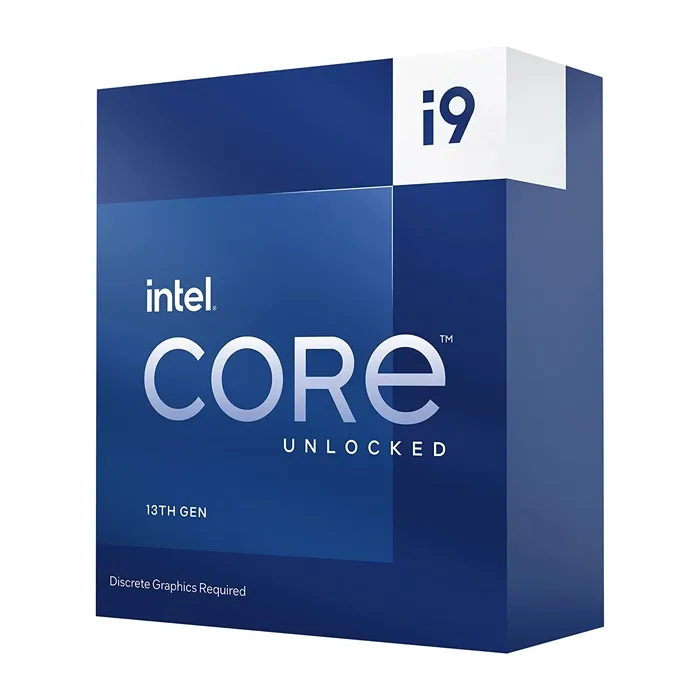

INTEL CORE I9-13900KF Box 13-core 13th Gen Processor

Power up your productivity, gaming, and content creation with the Intel Core i9-13900KF 3 GHz 24-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 24 cores— eight more than the previous generation— onto a single processor while still supporting the LGA 1700 socket. Designed to provide exceptional performance, the Core i9-13900KF features 16 low-voltage Efficient-cores that handle background tasks for multitasking while the eight 3 GHz Performance-cores provide speed for demanding applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 32MB of cache and a 5.7 GHz Turbo Boost Max 3.0 frequency that can be pushed higher with Thermal Velocity Boost and Adaptive Boost technologies, this processor is made to handle almost any workload. You can overclock this processor for even greater performance. The Core i9-13900KF also supports PCI Express 5.0 and dual-channel DDR5 memory at 5600 MHz.
The Core i9-13900KF does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. Please note that a thermal solution is NOT included.

Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks are handled by the processor's Efficient-cores for multitasking.

Intel Thread Director
The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 32 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Thermal Velocity Boost
Intel Thermal Velocity Boost (TVB) is a technology that unlocks extra CPU performance by pushing the maximum frequency to 5.8 GHz when thermal headroom and turbo power budget are available. It is ideal for burst workloads that have sudden spikes in CPU utilization, providing a temporary performance boost to help avoid slowdowns.

Adaptive Boost
Intel Adaptive Boost Technology opportunistically increases the all-core turbo frequency beyond previous Turbo Boost clock speeds, even when Thermal Velocity Boost conditions aren't met. Benefits can be seen with multi-threaded programs that scale with multiple cores, which includes many games. It can also help in multitasking situations, such as when gaming, streaming, and chatting all at once through different applications.

Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.

Specifications:

• General
  CPU Model: Intel Core i9-13900KF (13th Gen)
  CPU Socket: LGA 1700
  Manufacturing Process: 10 nm
  Maximum CPU Configuration: 1S
  Maximum Number of PCIe Lanes: 16 (Revision 5.0)
                                                                     4 (Revision 4.0)
  Unlocked: Yes
• Performance
  Number of Cores: 24 (8 x P-Cores + 16 x E-Cores)
  Number of Threads: 32
  Base Clock Speed: P-Core: 3 GHz
                                     E-Core: 2.2 GHz
  Maximum Boost Speed: P-Core Turbo: 5.4 GHz
                                                E-Core Turbo: 4.3 GHz
  L3 Cache: 36 MB
• Memory Support
  Maximum Capacity: 128 GB
  Memory Support: DDR5 Up to 5600 MHz
                                   DDR4 Up to 3200 MHz
  ECC Memory: No
  Channel Architecture: Dual Channel
  Maximum Memory Bandwidth: 89.6 GB/s
  Optane Memory Support: Yes
• Power
  Thermal Design Power (TDP): 125 W
  Included Thermal Solution: None
  Maximum Temperature: 212°F / 100°C
  Thermal Monitoring Technologies: Yes
• Technology
  AES Support: Yes
  Extension: AVX 2.0, AVX-512, SSE 4.1/4.2
  Instruction Set: 64-Bit
  Virtualization: Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
  DMI: DMI4 (16 GT/s)
  vPro Support: No
  Performance Technologies: Adaptive Boost, Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, SpeedStep, Thermal Velocity Boost, Turbo Boost 2.0, Turbo Boost Max 3.0
  Security Technologies: Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology
  Video Technologies: Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
• Integrated Graphics

  Integrated Graphics: None
  Maximum Resolution Support: 7680 x 4320 at 60 Hz
  Supported APIs: DirectX: 12
                                 OpenGL: 4.5
