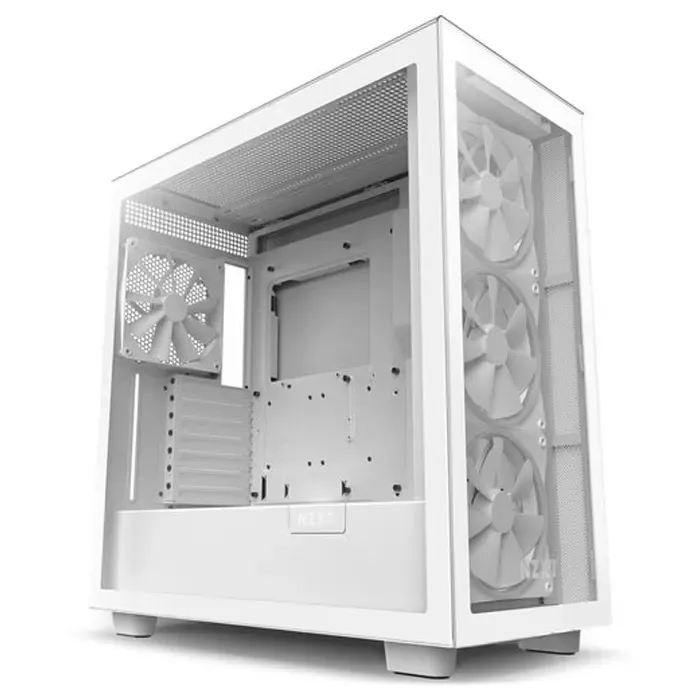

NZXT H7 Elite Edition ATX Mid Tower Case - White (2023) - CM-H71EW-02

NZXT H7 Elite Edition ATX Mid Tower Case - White (2023)

This mid-tower case is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed 140mm F Series RGB Fans, a built-in RGB & Fan Controller, widened channels, hooks, straps, and toolless entry.

Specifications:-KEY SPECS

Motherboard Support : Mini-ITX, Micro-ATX, ATX
Enclosure Type : Mid-Tower
Case Material : SGCC Steel, Ultra-clear Tempered Glass


DIMENSIONS

Height : 505mm (With Feet)
Width : 230mm
Depth : 480mm
Weight : 11.36 kg


COMPATIBILITY & CLEARANCE

Max CPU Cooler Clearance : Up to 185mm
Max GPU Clearance : Up to 400mm
Front Radiator Clearance : 60mm
Top Radiator Clearance : 30mm
Cable Management : 18-22mm


FRONT I/O PORTS

USB 3.2 Gen 1 Type-A : 2
USB 3.2 Gen 2 Type-C : 1
Headset Audio Jack : 1


RGB AND FAN CONTROLLER

Fan Channels : 3
NZXT RGB Connector : 6 (Support up to 120 LEDs)


EXPANSION SLOTS

Standard : 7
Vertical : 0


DRIVE BAYS

2.5" : 4+2
3.5" : 2


FAN SUPPORT

Front : 3 x 120mm / 3 x 140mm
Top : 3 x 120mm / 2 x 140mm
Rear : 1 x 120mm / 1 x 140mm
Filters : All Air Intakes


RADIATOR SUPPORT

Front : Up to 360mm with Push/Pull
Top : Up to 360mm
Rear : Up to 140mm


FAN SPECS

Model : F140Q (Case Version)
Speed : 1200 ± 240RPM
Airflow : 99.56 CFM
Static Pressure : 1.14 mm-H2O
Noise : 24.18 dBA
Fan Connector : 3-pin


FAN SPECS

Model : F140 RGB
Speed : 500 - 1800 RPM
Airflow : 24.85 - 89.48 CFM
Static Pressure : 0.94 - 3.39 mm-H2O
Noise : 20 - 32.5 dBA
Fan Connector : 4-pin


Inside the Box

H7 Elite Case : 1
140mm Quiet Airflow Fan (Case Version)1
140mm RGB Fan : 3
RGB and Fan Controller : 1
Installation Accessories : 1
